LXD110
LXD110

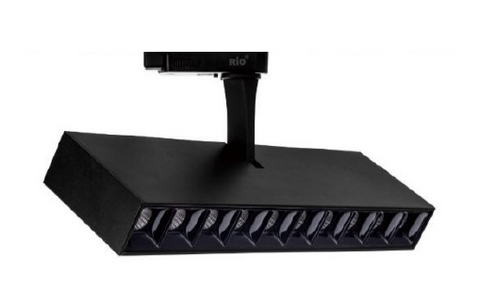

20W LED 3 WIRE LINEAR TRACK LIGHT WITH BUILT IN DRIVER
General Information
Description: 20w LED Track Light with Triac dimming
Material: Aluminium + Iron
Fitting Colors: Sandy Black
Rotation Angle (degree): 355
Tilting Angle (degree): 90
Beam Angle (°): 45 (Also Available in 15° / 30° Upon Request at additional cost)
Track System: Available in 3 wire, 3 phase
IP Rating: 20
Optic: Reflector + Lens + Diffuser
Colour Temperature: 3000K / 4000K
CRI: 95
Working Temperature (°C): 20 +32
Storage Temperature (°C): 20 +50
Lifespan
Lifetime (hours): 50,000
Luminous Flux after 50,000hours (lm): LM80 Comply
Light Technical Information
| Color Temperature | CRI (Ra) | Gamut Index (GAI) | System Lumen | Lumen Per Watt |
| 3000K | 95 | 100 | 1777lm | 74lm/w |
| 4000K | 95 | 100 | 2045lm | 85lm/w |
Electrical Information
System Power (w): 24
Input Voltage (v) & Frequency: 220-240V 50/60Hz
Output Voltage (v): 27-29
Current (mA): 700
Power Factor: 0.9
Efficiency (%): 83
Total Harmonic Distortion (%): 20
Ripple (%): ±5
Dimmable: Triac Dimming
DALI Dimming - Upon Request
